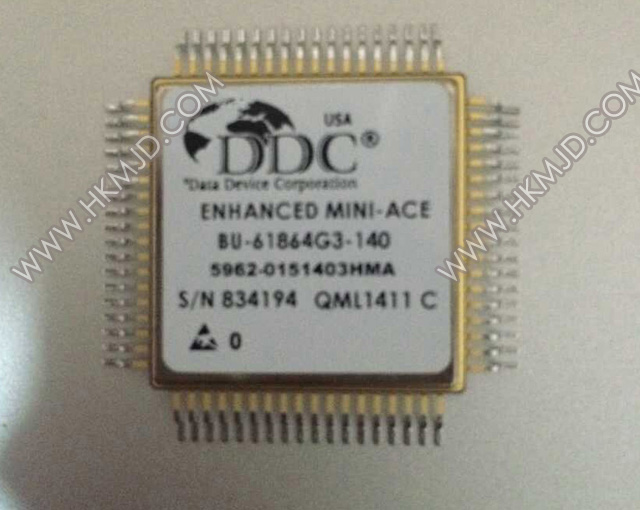

DDC BU-61864G3-140 MIL-STD-1553 CONTROLLER

Mfr Package Description

25.40 X 25.40 MM, 2.54 MM HEIGHT, CERAMIC, QFP-72

REACH Compliant

Yes

Status

Active

Microprocessor/Microcontroller/Peripheral IC Type

SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

Address Bus Width

16

Boundary Scan

NO

Clock Frequency-Max

20 MHz

Communication Protocol

MIL STD 1553A; MIL STD 1553B

Data Encoding/Decoding Method

BIPH-LEVEL(MANCHESTER)

Data Transfer Rate-Max

0.1250 MBps

External Data Bus Width

16

JESD-30 Code

S-CQFP-G72

JESD-609 Code

e0

Low Power Mode

NO

Moisture Sensitivity Level

NOT SPECIFIED

Number of Serial I/Os

2

Number of Terminals

72

Operating Temperature-Min

-55 Cel

Operating Temperature-Max

125 Cel
