XILINX XC9572XL-10TQG100C Высокопроизводительная cpld при

XILINX

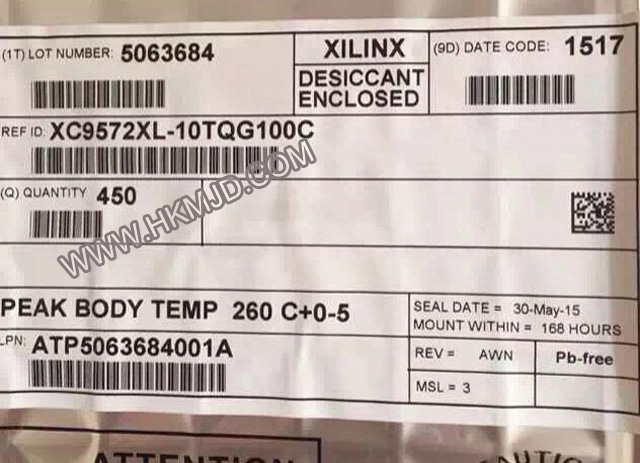

XC9572XL-10TQG100C

XC9572XL-10TQG100C Лист данных

Категория продукта

Высокопроизводительная cpld при

приложение

низкое напряжение

спецификация

5 ns pin-to-pin logic delays

System frequency up to 178 MHz

72 macrocells with 1,600 usable gates

Available in small footprint packages

- 44-pin PLCC (34 user I/O pins)

- 44-pin VQFP (34 user I/O pins)

- 48-pin CSP (38 user I/O pins)

- 64-pin VQFP (52 user I/O pins)

- 100-pin TQFP (72 user I/O pins)

- Pb-free available for all packages

• Optimized for high-performance 3.3V systems

- Low power operation

- 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V

signals

- 3.3V or 2.5V output capability

- Advanced 0.35 micron feature size CMOS

Fast FLASH™ technology

• Advanced system features

- In-system programmable

- Superior pin-locking and routability with

Fast CONNECT™ II switch matrix

- Extra wide 54-input Function Blocks

- Up to 90 product-terms per macrocell with

individual product-term allocation

- Local clock inversion with three global and one

product-term clocks

- Individual output enable per output pin

- Input hysteresis on all user and boundary-scan pin

inputs

- Bus-hold circuitry on all user pin inputs

- Full IEEE Standard 1149.1 boundary-scan (JTAG)
