ST STM8S103F2M6 8 битные микроконтроллеры

ST

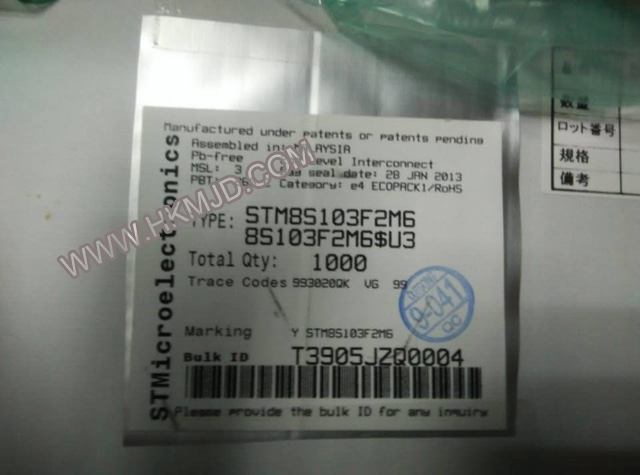

STM8S103F2M6

STM8S103F2M6 Лист данных

Категория продукта

8-битные микроконтроллеры

приложение

PWM

спецификация

Core

  16 MHz advanced STM8 core with Harvard

architecture and 3-stage pipeline

  Extended instruction set

Memories

  Program memory: 8 Kbytes Flash; data

retention 20 years at 55 °C after 10 kcycles

  Data memory: 640 bytes true data EEPROM;

endurance 300 kcycles

  RAM: 1 Kbytes

Clock, reset and supply management

  2.95 to 5.5 V operating voltage

  Flexible clock control, 4 master clock sources

– Low power crystal resonator oscillator

– External clock input

– Internal, user-trimmable 16 MHz RC

– Internal low-power 128 kHz RC

  Clock security system with clock monitor

  Power management:

– Low-power modes (wait, active-halt, halt)

– Switch-off peripheral clocks individually

  Permanently active, low consumption poweron

and power-down reset
