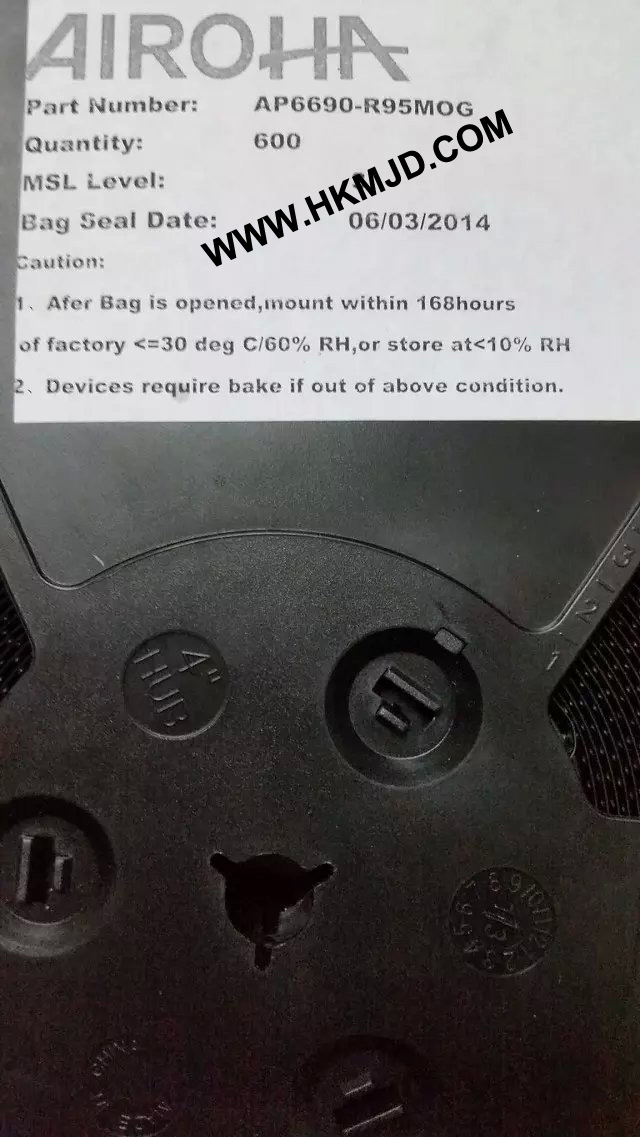

Airoha AP6690 3G смартфон txm

Производитель

Airoha

Номер в каталоге производителя

AP6690

Категорияпродукта

3G смартфон txm

Лист данных

AP6690 Серия


Характеристики

Key Features

• Quad-band GSM/EDGE, dual-band TD-SCDMA transmit and Receive Front-end Module with Six High Linearity/ Low Insertion Loss TRX Ports

• High Efficiency

- 38% for GSM850/EGSM900

- 35% for DCS1800/PCS1900

• 0dBm to 6dBm Drive Level

• 50Ω Matched Input/Output

• >50dB Dynamic range

• Integrated Low Pass Filter for High Order Harmonics Rejection

• >8kV ESD Protection at Antenna Port

• ​Small Outline

-6mm x 6mm x 1.00mm

-28-pin configuration

​Application

• ​Multimode Mobile Phone

- Class 4 GSM850/GSM900

- Class 1 DCS/PCS

- Class 12 GPRS Multi-slot operation

- Linear EDGE operation

- Dual-band TD-SCDMA, Band 34/39

- Six high linearity TRX ports for 3G application
