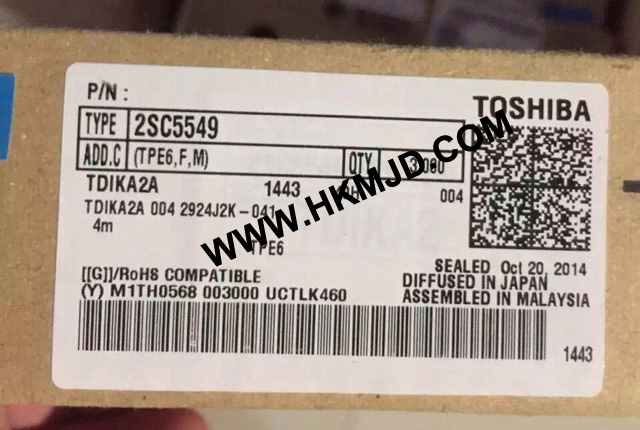

TOSHIBA 2SC5549 Высокая скорость переключения IC

Производитель

TOSHIBA

Номер в каталоге производителя

2SC5549

Категория продукта

Высокая скорость переключения

Лист данных

2SC5549 Серия


Характеристики

• Suitable for RCC circuits. (guaranteed small current hFE)

 : hFE = 13 (min) (IC = 1 mA)

• High speed: tr = 0.5 µs (max), tf = 0.3 µs (max) (IC = 0.24 A)

• High breakdown voltage: VCEO = 400 V/R15.

The gates of all protection FETs are pulled to the source with a high-value resistor between the gate and

source to ensure they are turned off if the gate drive is open.

Capacitors C16 and C17 help protect the FETs during an ESD event. The use of two devices ensures

normal operation if one of them becomes shorted. In order to have good ESD protection, the copper trace

inductance of the capacitor leads must be designed to be as short and wide as possible. Ensure that the

voltage rating of both C16 and C17 are adequate to hold off the applied voltage if one of the capacitors

becomes shorted.
