Производитель

XILINX

Номер в каталоге производителя

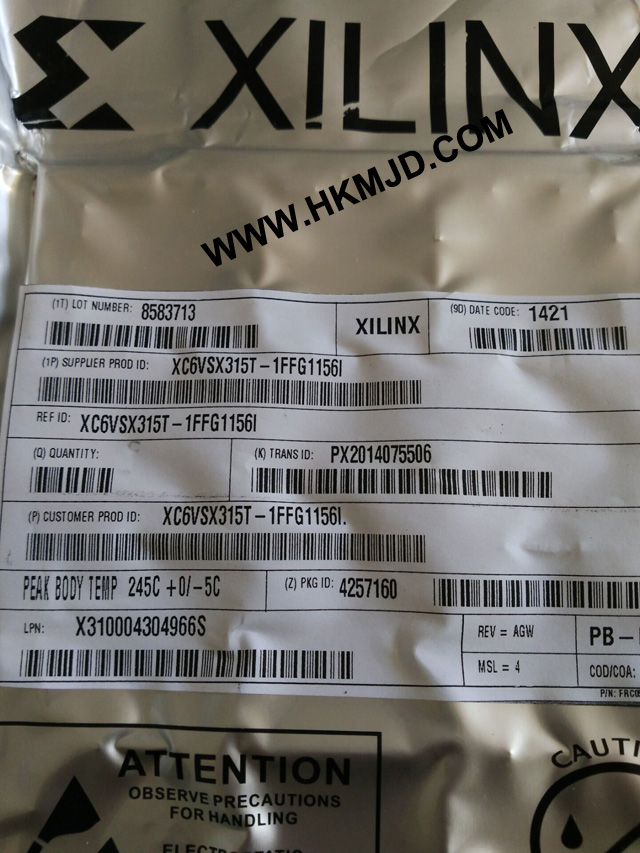

XC6VSX315T-1FFG1156I

Категория продукта

Virtex-6 FPGA

Лист данных

XC6VSX315T Серия


Характеристики

• Three sub-families:

• Virtex-6 LXT FPGAs: High-performance logic with

advanced serial connectivity

• Virtex-6 SXT FPGAs: Highest signal processing

capability with advanced serial connectivity

• Virtex-6 HXT FPGAs: Highest bandwidth serial

connectivity

• Compatibility across sub-families

• LXT and SXT devices are footprint compatible in

the same package

• Advanced, high-performance FPGA Logic

• Real 6-input look-up table (LUT) technology

• Dual LUT5 (5-input LUT) option

• LUT/dual flip-flop pair for applications requiring rich

register mix

• Improved routing efficiency

• 64-bit (or two 32-bit) distributed LUT RAM option

per 6-input LUT

• SRL32/dual SRL16 with registered outputs option

• Powerful mixed-mode clock managers (MMCM)

• MMCM blocks provide zero-delay buffering,

frequency synthesis, clock-phase shifting, inputjitter

filtering, and phase-matched clock division

• 36-Kb block RAM/FIFOs

• Dual-port RAM blocks

• Programmable

- Dual-port widths up to 36 bits

- Simple dual-port widths up to 72 bits

• Enhanced programmable FIFO logic

• Built-in optional error-correction circuitry

• Optionally use each block as two independent

18 Kb blocks

• High-performance parallel SelectIO™ technology

• 1.2 to 2.5V I/O operation

• Source-synchronous interfacing using

ChipSync™ technology

• Digitally controlled impedance (DCI) active

termination

• Flexible fine-grained I/O banking

• High-speed memory interface support with

integrated write-leveling capability
