Шеньчженьская электротехническая компания лтд Mingjiada
|
модель Изготовитель |
|
|
Межплатные и промежуточные соединители Narrow Pitch Connect (Board to FPC) 0.4mm |
|
|
Совет по FPC разъем мобильного оборудования (cellular phones, smartphones, laptops, and portable music players, etc.) |
|
|
Техническая спецификация |
Детали
|
Особенности |
|
Образ FEATURES Производитель: Panasonic Категория продукта: Межплатные и промежуточные соединители RoHS: Соответствует RoHS Подробности Серия: A4S Упаковка: Reel Торговая марка: Panasonic Industrial Devices Размер фабричной упаковки: 500 |
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | AXE530127 |
| Part Number | AXE530127 |
| Family Name (Head of product No.) | AXE5 |
| Socket/Header | Socket |
| Connector Type | BOARD-TO-FPC |
| Applications | Board-to-FPC connections of mobile equipment (cellular phones, smartphones, laptops, and portable music players, etc.) |
| Terminal pitch (mm) | 0.4 |
| Number of pins | 30 |
| Soldering terminals | with |
| Positioning bosses | without |
| Body length (L mm) | 8.50 |
| Body Height (H mm) | 0.77 |
| Short width | 2.50 |
| Recommended PC board pattern Width (mm) | 2.90 |
| Mated height (mm) | 0.8mm/1.0mm |
| Molded portion material | LCP resin (UL94V-0) |
| Contact and Post Material | Copper alloy |
| Surface treatment material | Base: Ni plating Surface: Au plating |
| Rated current | 0.3A/pin contact (Max. 5A at total pin contacts) |
| Insulation resistance (Min.MΩ)(Initial) | 1000 |
| Dielectric strength | 150V AC for 1min. |
| Contact resistance (Max.mΩ) | 90 |
| Insertion and removal life (times) | 30 |

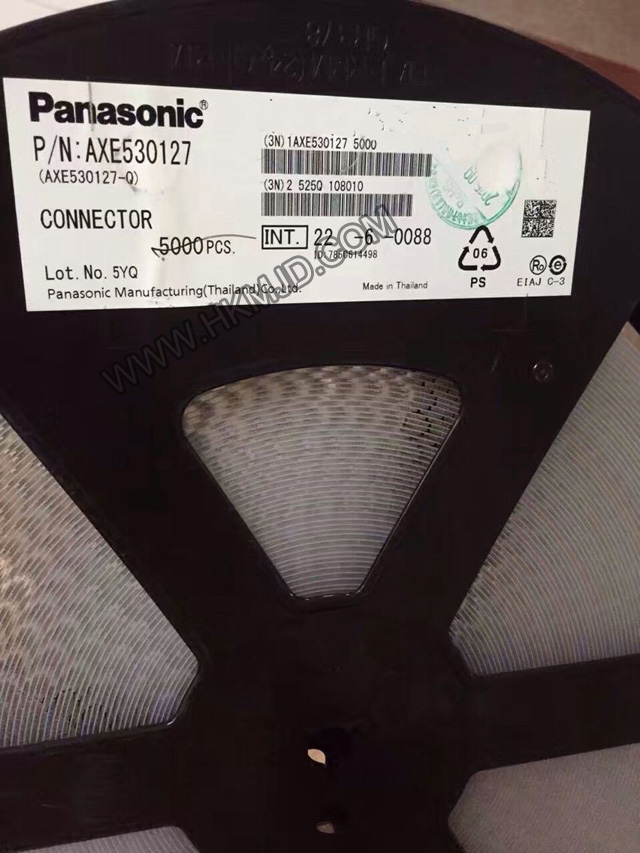

| Packing style | EMBOSSED TAPE AND PLASTIC REEL |
| Package | Embossed packaging (8 mm pitch) |
| Packing Inner carton |
5,000 pieces (1-reel) |
| Packing Outer carton |
10,000 pieces |
