HMC199MS8E HMC199MS8ETR Радиочастотные переключатели

Особенности

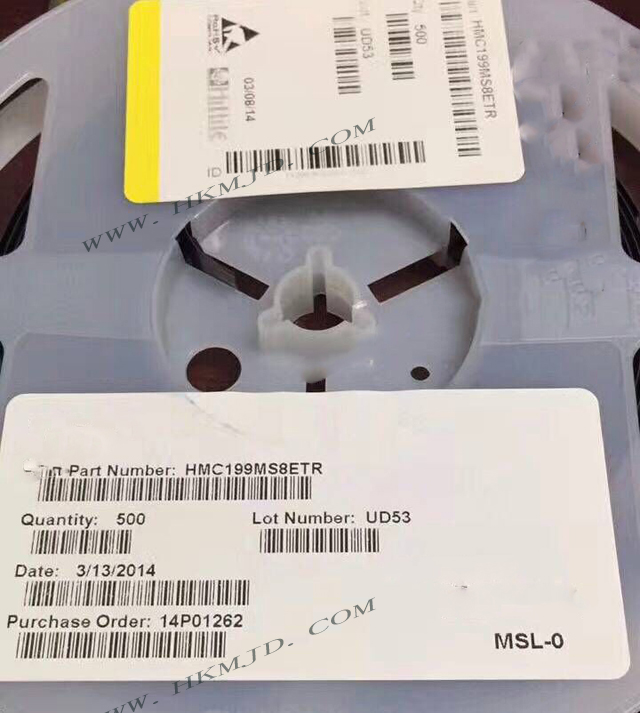

Образ

Categories RF/IF and RFID RF Switches

Manufacturer     Analog Devices Inc.

Packaging   Cut Tape (CT)

Part Status  Obsolete

Frequency - Lower   DC

Frequency - Upper   2.5GHz

Isolation @ Frequency    21dB @ 2.5GHz (typ)

Insertion Loss @ Frequency  0.7dB @ 2.5GHz

IIP3      36dBm (typ)

Topology    Reflective

Circuit   2 x SPDT

P1dB     23dBm (typ) IP1dB

Impedance  50 Ohm

Operating Temperature  -40°C ~ 85°C

RF Type      Cellular, ISM, PCS

Package / Case  8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package 8-MSOP
