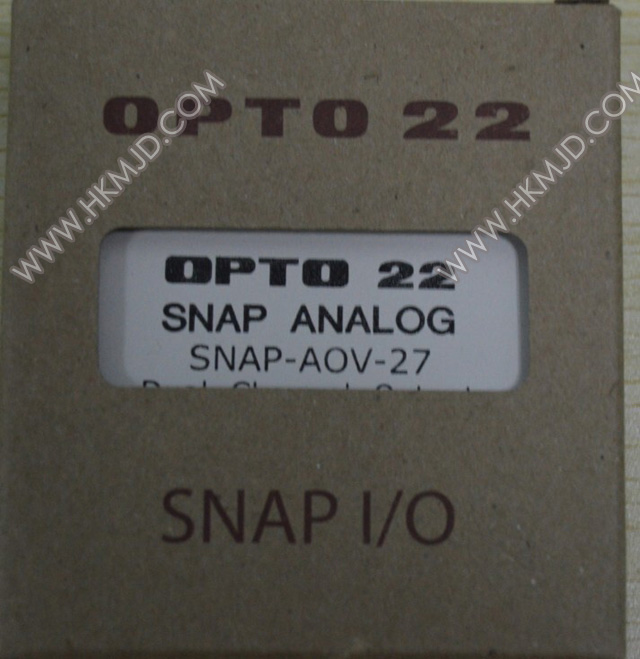

Фото：
Оригинальный PDF：
| Application | Data Acquisition, Energy Management, Industrial Automation, Remote Monitoring |
| Brand/Series | SNAP Series |
| Connection to Host | Backplane |
| Current, Input | 150 mA |
| Current, Rating | ±5 mA |
| Depth | 90.17 mm |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC System |
| Input Current | 150 mA |
| Length | 82.55 mm |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Output |
| Mounting Type | DIN Rail |
| Number of Channels | 2 |
| Number of IO Channels | 2 |
| Number of Outputs | 2 |
| Operating Temperature Range | 0 to +70 °C |
| Output | -10 to +10 VDC |
| Output Type | Analogue |
| Output, Range | -10 to +10 VDC |
| Primary Type | Control |
| Resolution | 4.88 mV |
| Series | SNAP |
| Special Features | Convenient Pluggable Wiring, Optical Isolation |
| Standards | UL Listed, CE Marked, RoHS Compliant, DFARS, FM Approved |
| Supply Voltage | 5 VDC |
| Temperature, Operating | 0 to +70 °C |
| Time, Response | 3 ms (Delta Time) |
| Type | Output |
| Voltage, Isolation | 4000 V |
| Voltage, Supply | 5 V |
| Width | 18.29 mm |
