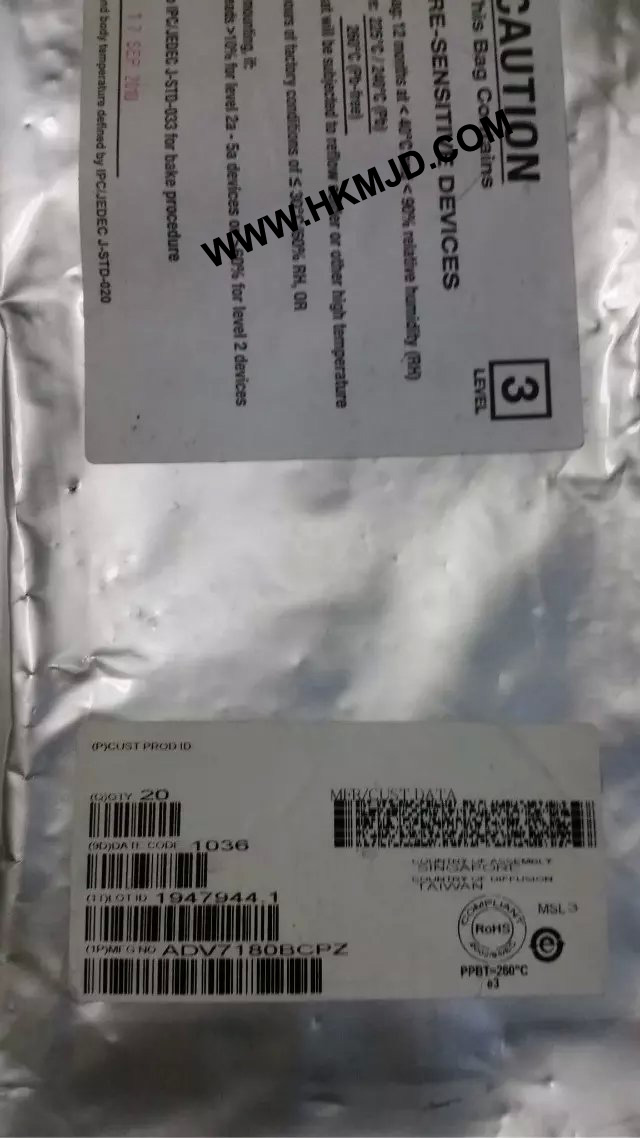

AD ADV7180 ADV7180BCPZ ИС для обработки видеосигналов 10B 4x Oversampling SDTV Decoder

Приложения

 Цифровые видеокамеры и КПК

Описание

FEATURES

Qualified for automotive applications

Worldwide NTSC/PAL/SECAM color demodulation support

One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling

for Y/C mode, and 2× oversampling for YPrPb (per channel)

3 video input channels with on-chip antialiasing filter

CVBS (composite), Y/C (S-Video), and YPrPb (component)

video input support

5-line adaptive comb filters and CTI/DNR video

enhancement

Mini-TBC functionality provided by adaptive digital line

length tracking (ADLLT), signal processing, and enhanced

FIFO management

Integrated AGC with adaptive peak white mode

Macrovision copy protection detection

NTSC/PAL/SECAM autodetection

8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS, and FIELD1

1.0 V analog input signal range

Full-featured VBI data slicer with teletext support (WST)

Power-down mode and ultralow sleep mode current

2-wire serial MPU interface (I2C compatible)

Single 1.8 V supply possible

1.8 V analog, 1.8 V PLL, 1.8 V digital, 1.8 V to 3.3 V I/O supply

−10°C to +70°C commercial temperature grade

−40°C to +85°C industrial/automotive qualified temperature grade

−40°C to +125°C temperature grade for automotive qualified 4 package types

64-lead, 10 mm × 10 mm, RoHS compliant LQFP

48-Lead, 7 mm × 7 mm, RoHS compliant LQFP

40-lead, 6 mm × 6 mm, RoHS compliant LFCSP

32-lead, 5 mm × 5 mm, RoHS compliant LFCSP
