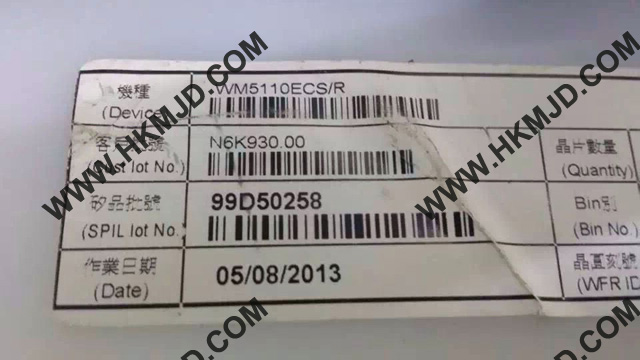

WOLFSON WM5110 WM5110ECS Низкий мощности звуковой система

Производитель

WOLFSON

Номер в каталоге производителя

WM5110ECS

Категория продукта

 Низкий мощности звуковой

Лист данных

WM5110 Серия


Характеристики

FEATURES

600 MIPS, 600MMAC multi-core audio-signal processor

Programmable wideband, multi-mic audio processing

- myZoneTM stereo adaptive ambient noise cancellation

- Transmit-path noise reduction and echo cancellation

- Microphone beam-forming

- Wind noise, sidetone and other programmable filters

- Dynamic Range Control, Fully parametric EQs

- Multiband Compression, Virtual Surround Sound

Multi-channel asynchronous sample rate conversion

Integrated 6/8 channel 24-bit hi-fi audio hub CODEC

- 6 ADCs, 100dB SNR microphone input (48kHz)

- 8 DACs, 110dB SNR headphone playback (48kHz)

Audio inputs

- Up to 6 analogue or 8 digital microphone inputs

- Single-ended or differential mic/line inputs

Multi-purpose headphone / earpiece / line output drivers

- 3 stereo output paths

- 33mW into 32Ω load at 1% THD+N

- 100mW into 16Ω BTL load at 5% THD+N

- 3mW typical headphone playback power consumption

- Pop suppression functions

- 2µVRMS noise floor (A-weighted)

2 x 2W stereo Class D speaker output drivers

Four-channel digital speaker (PDM) interface

SLIMbus® audio and control interface

3 full digital audio interfaces

- Standard sample rates from 4kHz up to 192kHz

- Ultrasonic accessory function support

- TDM support on all AIFs

- 8 channel input and output on AIF1

Flexible clocking, derived from MCLKn, BCLKn or SLIMbus

2 low-power FLLs support reference clocks down to 32kHz

Advanced accessory detection functions

- Low-power standby mode

- ‘Switchable ground’ support for different headset types

Configurable functions on 5 GPIO pins

Integrated LDO regulators and charge pumps

Small W-CSP package, 0.4mm pitch

APPLICATIONS

Smartphones and Multimedia handsets

Tablets and Mobile Internet Devices (MID)

General-purpose low-power audio CODEC hub
